Flexible systems

Normally the standard system is permanently mounted on a stand. Other types of installations can of course be made to save space or to use the sampling system in a more flexible way. Our engineers will study your equipment and available area in your plant to guarantee that your sampling system installation will be the best possible.

Examples of flexible systems

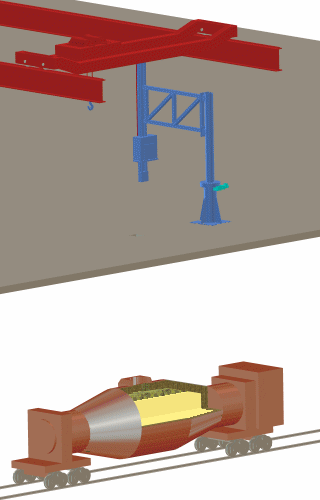

Swing-arm
The system is mounted on a swing-arm that moves the equipment into position during the sampling sequence. Click to see animation

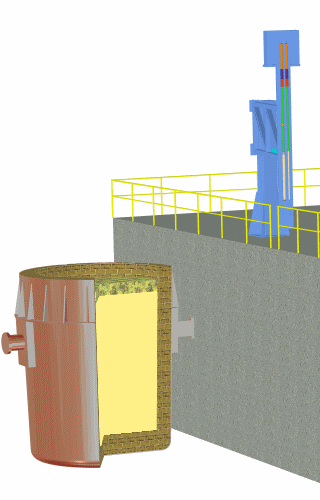

Tilt
The system is tilted to the position over the ladle during the sampling sequence. Click to see animation

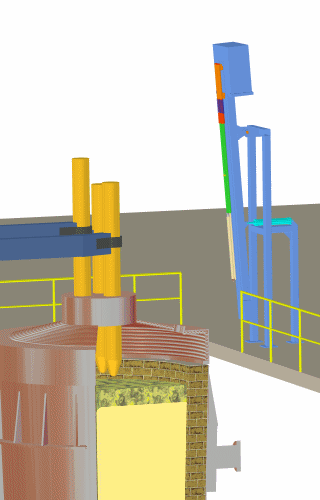

EAF sampling
A flexible stand-alone system with one or two lances has been designed for sampling in electric arc furnaces. Click to see animation

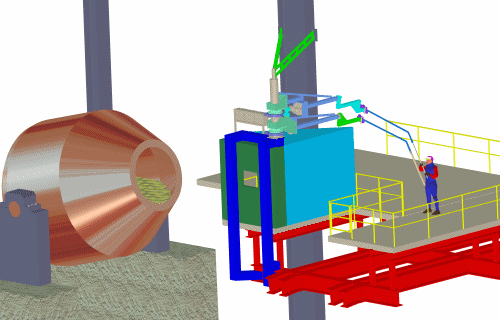

Converter sampling
A unique equipment has been designed for taking samples in for example AOD-converters. Two separate swing arms taked the sample and measures the temperature. Click to see animation

Telescopic lances
Where space is limited in which to install conventional lance drive mechanism, we can offer a unique solution to the problem. A lance drive mechanism with telescopic lances can be the answer. This system gives twice the stroke length compared to a standard system with the same overall length of the lance drive mechanism.

This type of equipment has been the only solution on several occasions when over head cranes etc. have limited the height available for a standard system. Click to see animation
